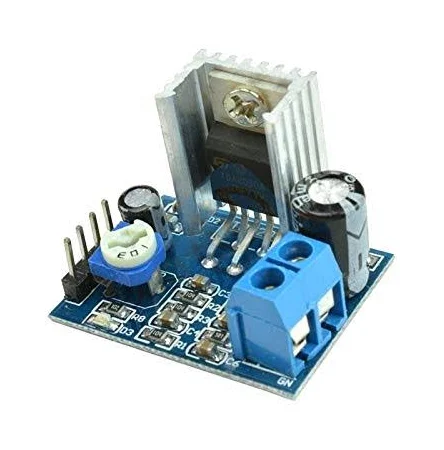

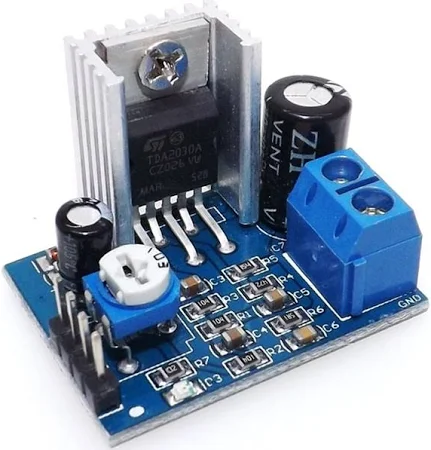

TDA2030A 6-12V 18W Audio Amplifier Module
SKU: EK255082
- Operating voltage: 6 to 12V DC
- Onboard TDA2030A Audio amplifier IC
- Mono channel 18W Power amplifier circuit design
- Onboard horn socket
- 10 k adjustable resistance to adjust the volume of the amplification
- Onboard power indicator light
- Chip has lead to the main pin, can directly input the audio signal
₹119.00
CompareFeatures:
- Onboard TDA2030A Audio amplifier IC
- Mono channel 18W Power amplifier circuit design
- Onboard horn socket
- 10 k adjustable resistance to adjust the volume of the amplification
- Onboard power indicator light
- Chip has lead to the main pin, can directly input the audio signal
Package Includes:
1 x TDA2030A 6-12V 18W Audio Amplifier Module
Based on 0 reviews
Be the first to review “TDA2030A 6-12V 18W Audio Amplifier Module”
