RFID Reader/Writer RC522 SPI S50 with RFID Card and Tag


SKU : EK255



  1. Voltage: DC 3.3V (Do not use 5V supply)
  2. Operating Current :13-26mA
  3. Idle Current :10-13mA
  4. Operating Frequency: 13.56MHz
  5. Highly integrated analog circuitry to demodulate and decode responses
  6. Supports ISO/IEC 14443 A/MIFARE
  7. Typical operating distance in reading/Write mode up to 50 mm

110.00

Compare

Features :

  1. Highly integrated analog circuitry to demodulate and decode responses.
  2. Supports ISO/IEC 14443 A/MI-FARE.
  3. Typical operating distance in reading/Write mode up to 50 mm.
  4. Supports ISO/IEC 14443 A higher transfer speed communication up to 848 kBd.
  5. SPI up to 10 M bit/s.
  6. FIFO buffer handles 64 bytes send and receive.
  7. Flexible interrupt modes.
  8. Power-down by software mode.
  9. Programmable Timer.
  10. 2.5 V to 3.3 V power supply.
  11. CRC co processor.
  12. Internal self-test.

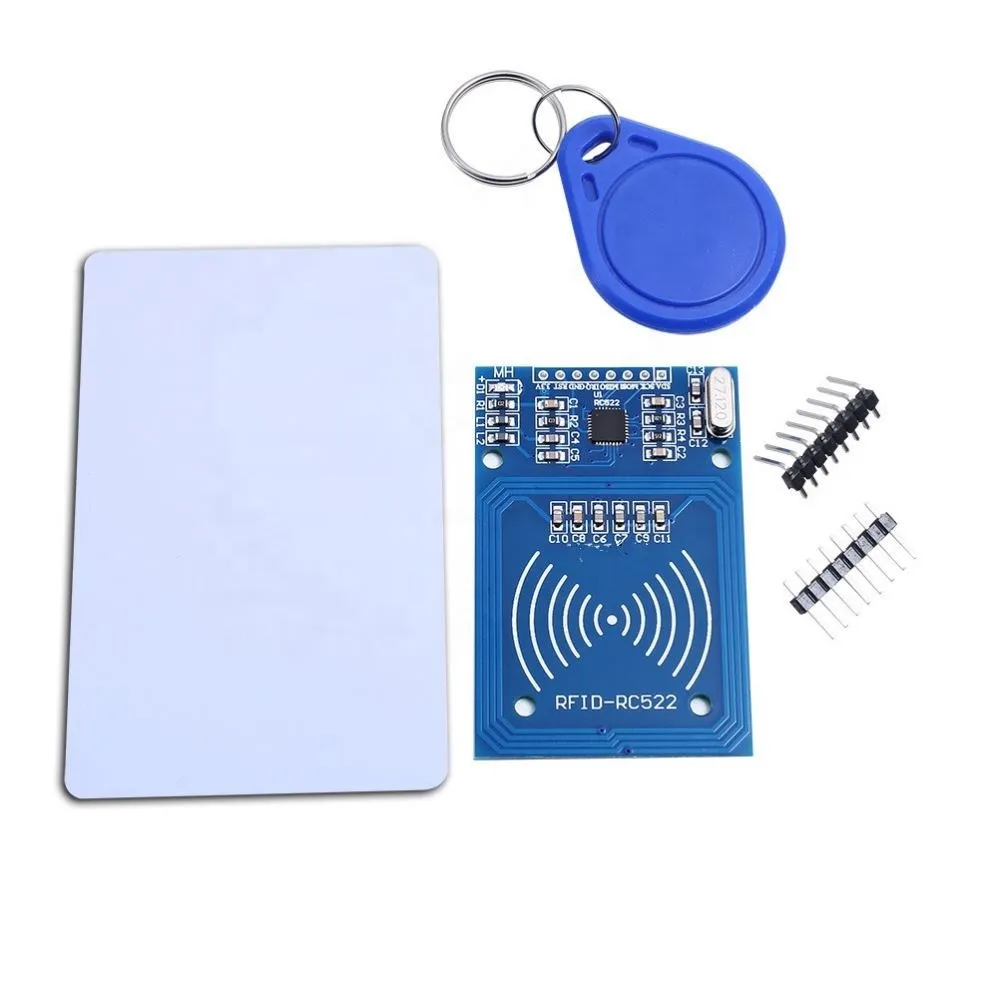

Package Includes

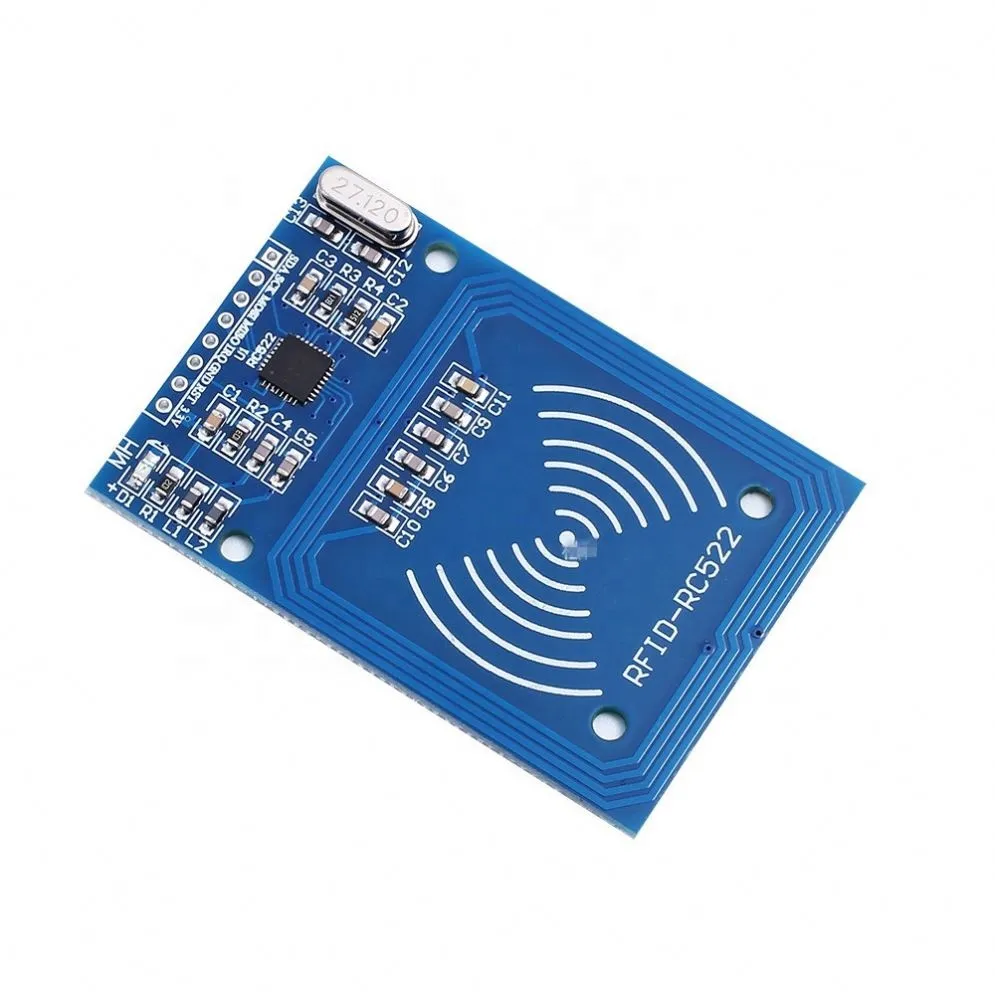

1 x RFID-RC522 Reader/Write Module
1 x Standard blank RFID card
2 x A Straight & right-angle header strip

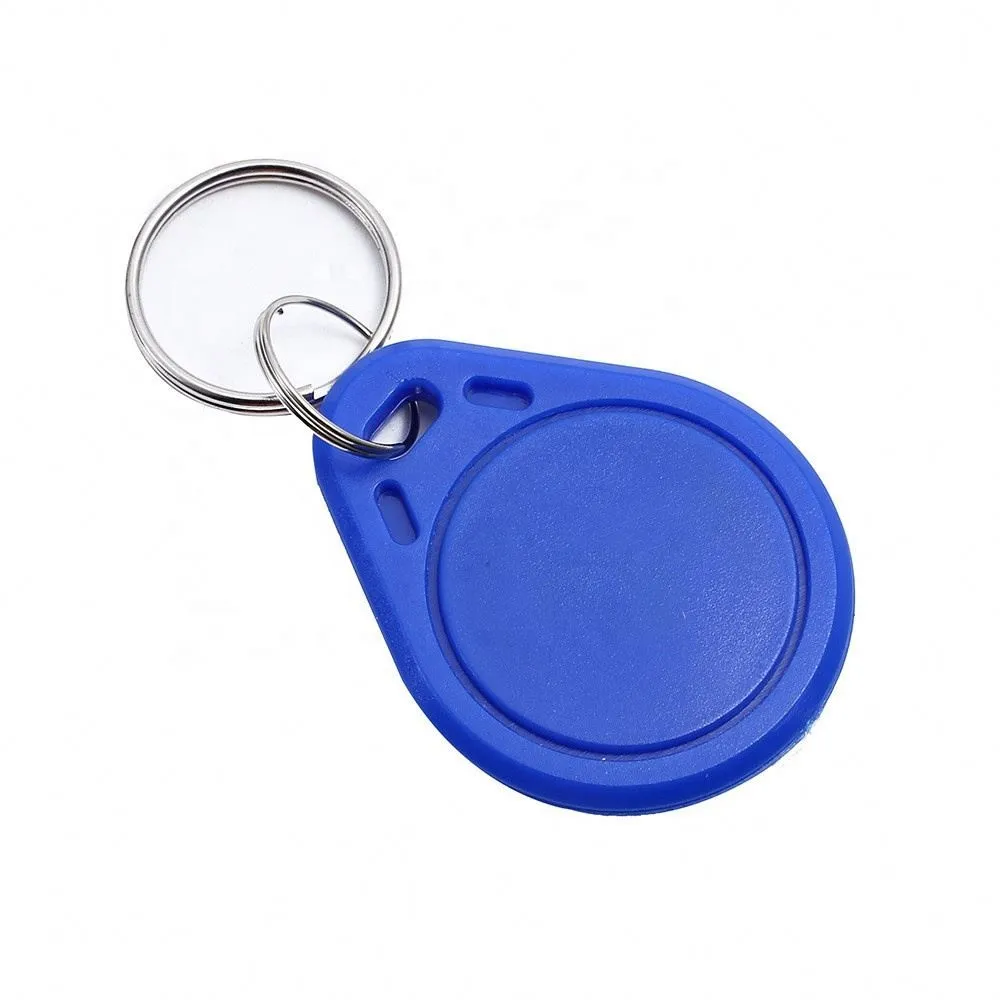

1 x Special-shaped key-chain RFID tag
