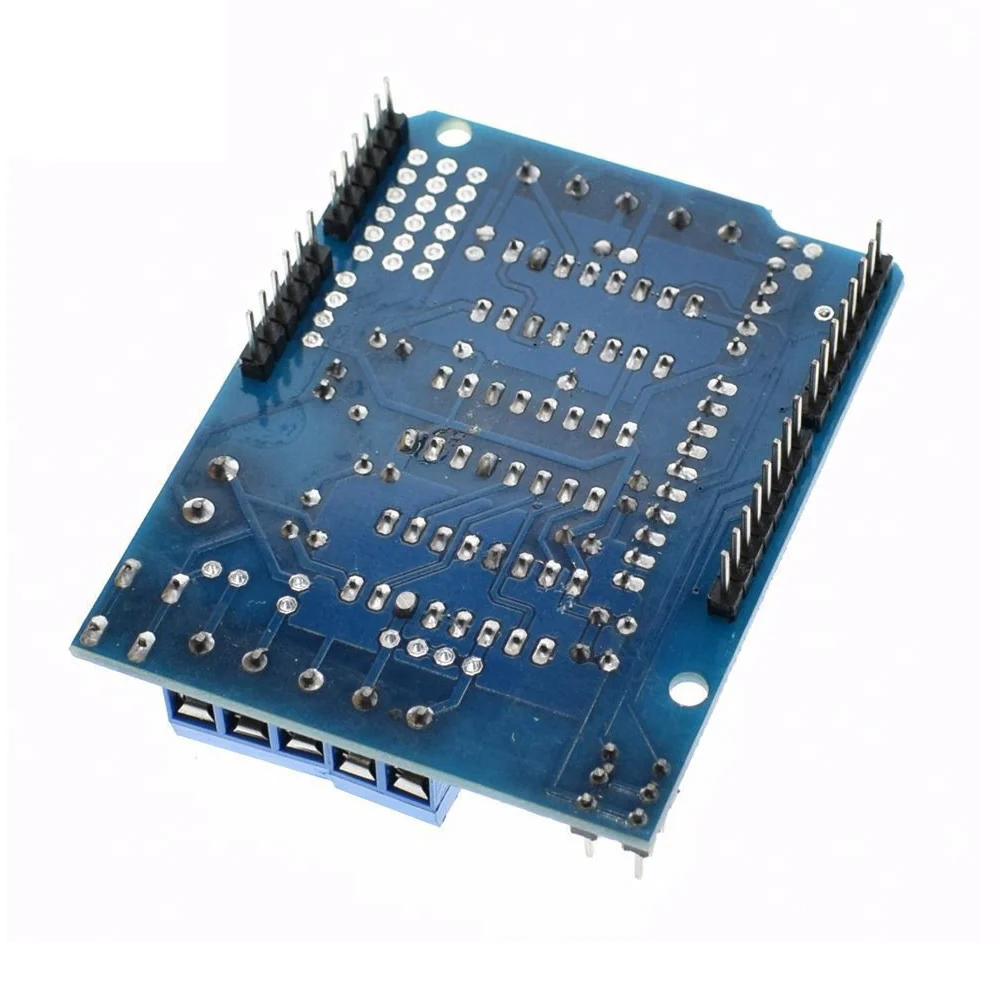

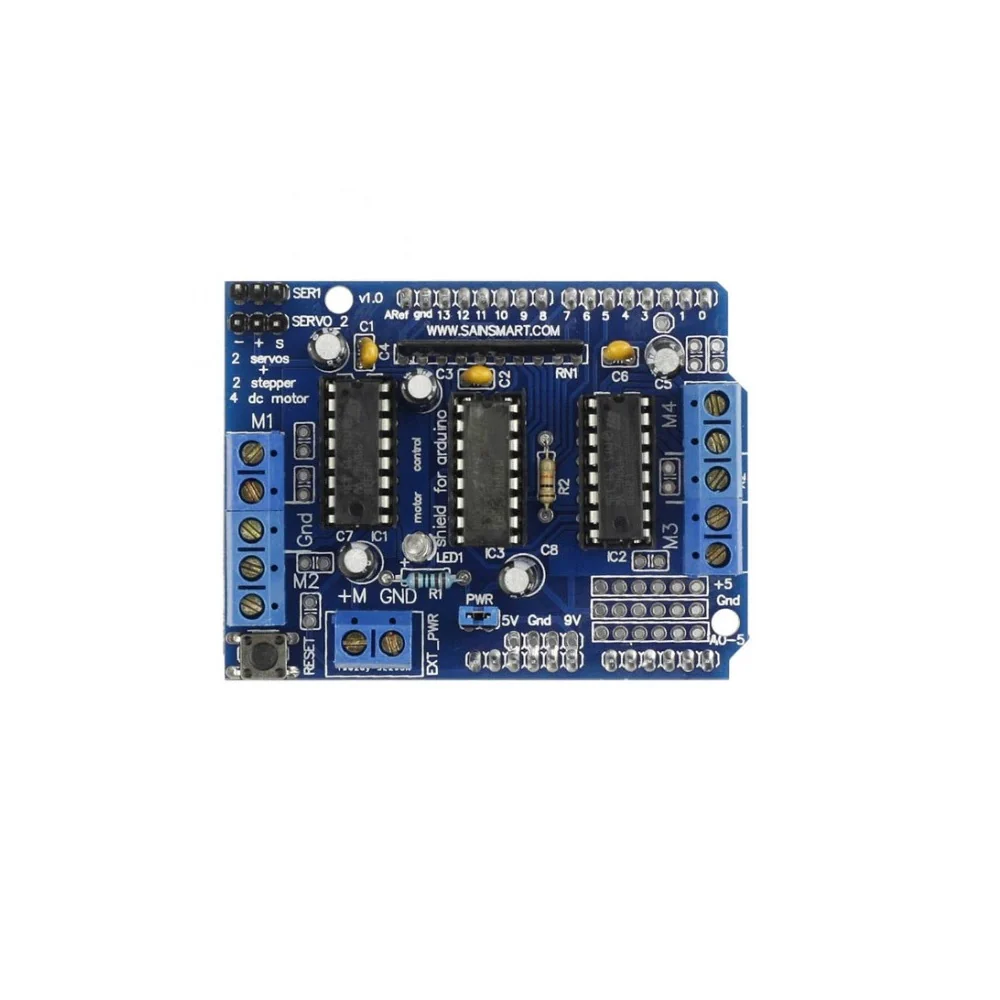

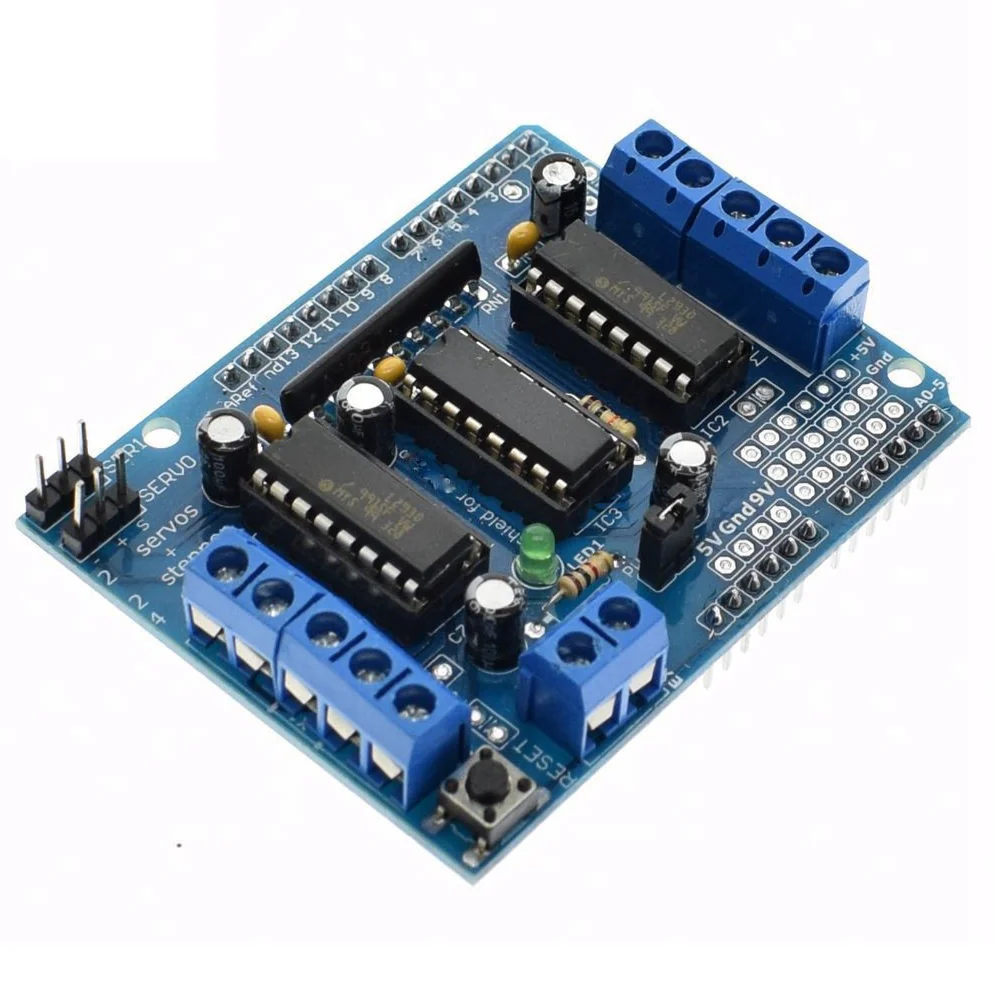

L293D Motor Driver Shield for Arduino
SKU : EK255048
| Model Type: | Servo Shield |
|---|---|
| Compatibility: | Arduino |
| Logic control voltage Vss | 4.5~5.5V |
| Dimensions (L x W x H) mm | 70x54x18 |
| Weight (g): | 35 |
| Shipping Weight | 0.037 kg |
| Shipping Dimensions | 8 × 6 × 3 cm |
₹174.00
Compare- 2 connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer
- 4 H-Bridges: L293D chip-set provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes.
- Can run motors on 4.5VDC to 25VDC.
- Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
- Up to 2 stepper motors (uni-polar or bipolar) with single coil, double coil, or interleaved stepping.
