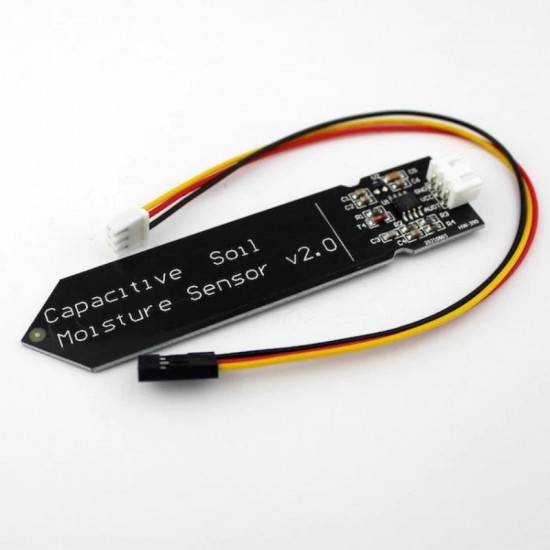

Capacitive Soil Moisture Sensor Module

Add to wishlist
Compare

SKU : EK255008

  1. Operating Voltage: 3.3 ~ 5.5 V DC
  2. Operating Current: 5mA.
  3. Interface: PH2.54-3P.
  4. Dimensions mm(LxWxH): 98 x 23 x 4.
  5. Supports 3-Pin Gravity Sensor interface
  6. Analog output.
  7. Weight (gm): 15.

₹74.00

Compare
This Capacitive soil moisture sensor measures soil moisture levels by capacitive sensing rather than resistive sensing like other sensors on the market. It is made of corrosion-resistant material which gives it excellent service life. Insert it into the soil around your plants and impress your friends with real-time soil moisture data!
This module includes an onboard voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is perfect for low-voltage MCU, both 3.3V, and 5V. For compatibility with a Raspberry Pi, it will need an ADC converter.
This soil moisture sensor is compatible with our 3-pin “Gravity” interface, which we can connect to the Gravity I/O expansion shield.
Applications:
  1. Garden plants
  2. Moisture detection
  3. Intelligent agriculture

Package Includes:

1 x Capacitive Soil Moisture Sensor

SKU: EK255008 Category:
  • Color: White + Green OR  White + Blue
  • Infrared Sensor with Control Circuit Board
  • The Sensitivity and Holding Time Can be Adjusted
  • Working Voltage Range: DC 4.5V- 20V
  • Current Drain: <60uA
  • Detection Range: <140°
  • Voltage Output: High/Low level Signal: 3.3V TTL output
  • Detection Distance: 3 to 7m (can be adjusted)
  • Delay Time: 5 to 200s (Can be Adjusted, Default 5s +/- 3%)
  • Blockade time: 2.5s (Default)
  • Work temperature: -20-+80°C
  • Dimension: 3.2cm x 2.4cm x 1.8cm (Approx)
  • Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
  • Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).
