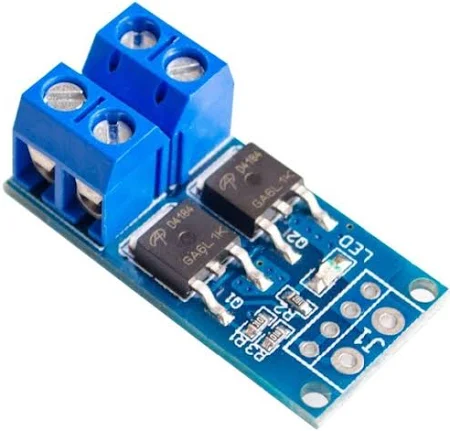

5-36V Switch Drive High-power Mosfet Trigger Module
SKU: EK255
- This 5V-36V Switch Drive High-power Mosfet Trigger Module can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, PWM, motor speed control, lamp brightness. etc.
₹99.00
CompareFeatures :
- The trigger source: digital high-low (DC3.3V – 20V), can be connected micro-controller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0–20KHZ perfect support.
- Output capacity: DC 5V – 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.
Applications :
- You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, PWM, motor speed control, lamp brightness. etc.
Package Includes :
- 1 x 5-36v Switch Drive High-power Mosfet Trigger Module
- 1 channel relay board
- Operating Voltage 5V
- Max Current : 20mA
- Relay Contact Current Capacity at AC250V: 10A
- Relay Contact Current Capacity at DC5V: 10A
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- High impedance controller pin
- Pull-down circuit for avoidance of malfunction
- Power supply indicator lamp
- Control indicator lamp
- Indicator for Relay output status
- Can Be controlled various appliances & other Equipment With Large current.
- Standard TTL Level logic controlled (AVR, Arduino, 8051, PIC, ARM)
- The module is compliant with international safety standards, control and load areas isolation trenches
