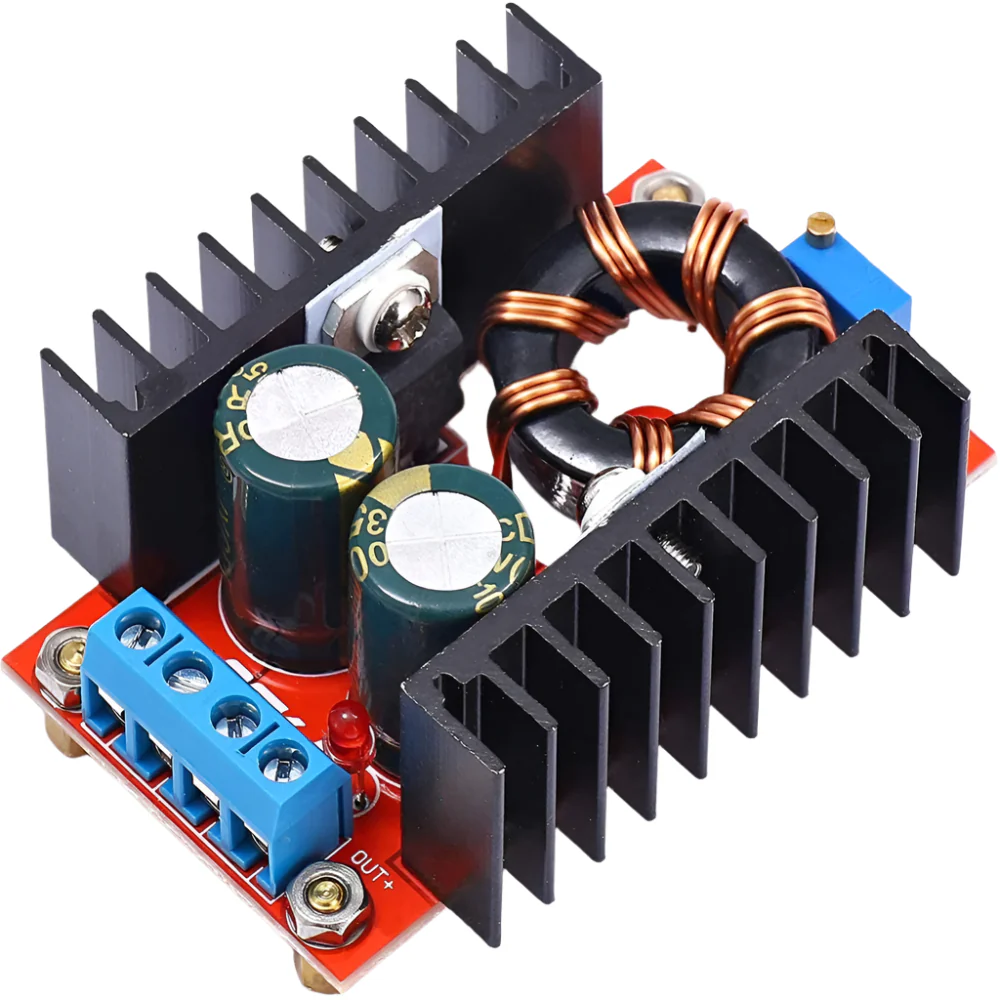

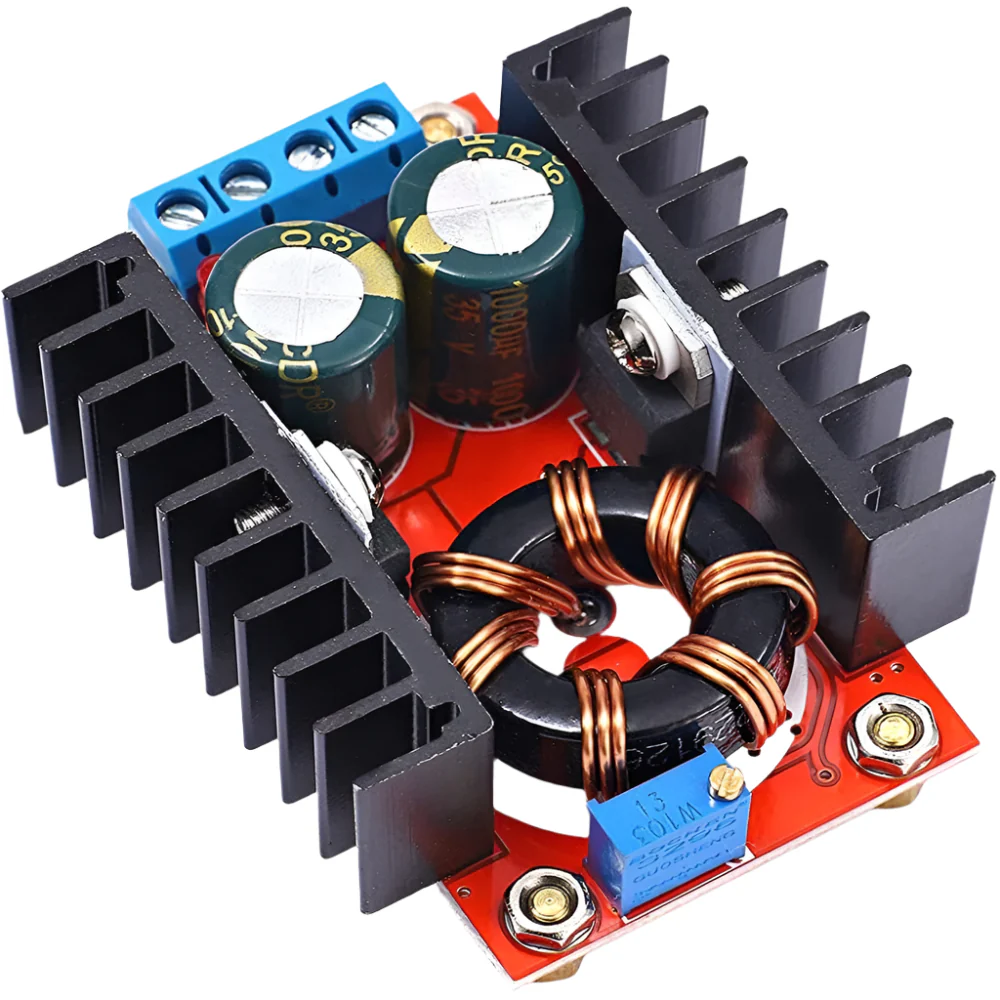

120W 12-32V to 35-60V 6A DC-DC Boost Converter Module

Apple

SKU : EK

  1. Input voltage :12-32V
  2. Output voltage:35-60V (adjustable)
  3. Output Current: 10A (MAX)
  4. Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
  5. The non-isolated step-up power conversion module
  6. Onboard LED illuminates when the voltage is applied to the module
  7. Equips Multi-turn Potentiometer.

Free Delivery above Rs.999/-

499.00

Compare
Applications:
  1. DIY adjustable output vehicle power supply. Provide 12V input, the output voltage can be continuously adjusted from 35V to 60V (output voltage cannot be lower than the input voltage).
  2. Universal car laptop power supply. Provide 12V input, the output voltage is adjustable to your notebook to work. Can easily drive dual-core or quad-core notebooks at 19V and up to 6A output current.
  3. Boost Charger, to convert your car’s 12V power to greater than 12V, such as 18V or 24V
  4. Power supply for your electronic devices, as long as the voltage is adjusted to the voltage and does not exceed the module’s rated current.

Note:

  1. Set the output voltage to the desired level using a voltmeter before connecting it to your equipment or load.
  2. Short circuit protection: None, please use caution to protect the module from overcurrent
  3. Input reverse polarity protection: None, please use a diode in series with the input to protect against input reverse polarity

Note: Actual product may vary in terms of color.


Features :

  1. The non-isolated step-up power conversion module
  2. Onboard LED illuminates when the voltage is applied to the module
  3. Equips Multi-turn Potentiometer.
  4. Easy to drive 65W 90W dual-core notebook.
  5. The output voltage is continuously adjustable on OUT+ and OUT- screw terminals (Output voltage must be greater than input voltage)

Package Includes :

1 x 120W 12-32V to 35-60V 6A DC-DC Boost Converter Module

4 x set of brass standoffs and screws

SKU: EK255-2 Categories: ,
Model Type: Boost Converter Module
Output Current (mA) 6000
Output Power (W): 120
Conversion efficiency 0.94
Operating Temperature (°C): -40 to 90
Length (mm): 65
Width (mm): 35
Height (mm): 25
Weight (g): 63
Shipping Weight 0.067 kg
Shipping Dimensions 7 × 8 × 3 cm
