Sensors

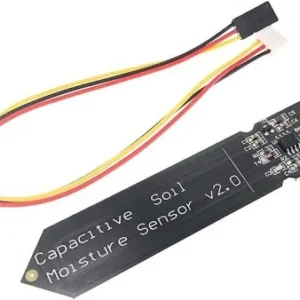

1. Operating Voltage: 3.3 ~ 5.5 V DC
2. Operating Current: 5mA.
3. Interface: PH2.54-3P.
4. Dimensions mm(LxWxH): 98 x 23 x 4.
5. Supports 3-Pin Gravity Sensor interface
6. Analog output.
7. Weight (gm): 15.

SKU : 255044

• Working Voltage:5V (DC)
• Static Current: Less than 2mA
• Output Signal:5V
• Sensor Angle: Less than 15 Degrees
• Detection Distance: 2 cm to 450 cm
• High Precision: Up to 2 mm
• Input Trigger Signal: 10µs TTL impulse
• Echo Signal: Output TTL PWL Signal
• High sensitivity ultrasonic range sensor
• Works with Arduino board

1. 3144 hall sensor
2. Features wide-range voltage comparator LM393
3. Signal output indicator
4. Analog / Digital output

1. Digital Output Hall-effect sensor.
2. Operating voltage: typically 5V.
3. Output Current: 25mA.
4. It can be used to detect both the poles of a magnet.

1. Input voltage: 3.0 V – 5.5 V
2. Output form: digital output (high and low level)
3. Detection distance: 0 – 4 cm (black and white line sensors)
4. 0 – 5 cm (adjustable distance detection)

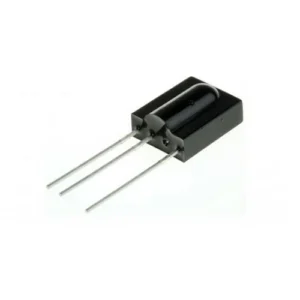

1. MPN: TSOP1738
2. Supply Voltage: 5 V
3. Power consumption: 0.4 to 1.0 mA
4. Min. Ee irradiation: 0.35 mW/m2 typ.
5. Angle of detection: 90
6. Dimensions of the casing (mm): 12.5 x 10 x Thickness 5.8
7. Temperature range: -25 C to +85 C
